Pneumatic Torque Systems
RAD Torque
[ view metric version ]

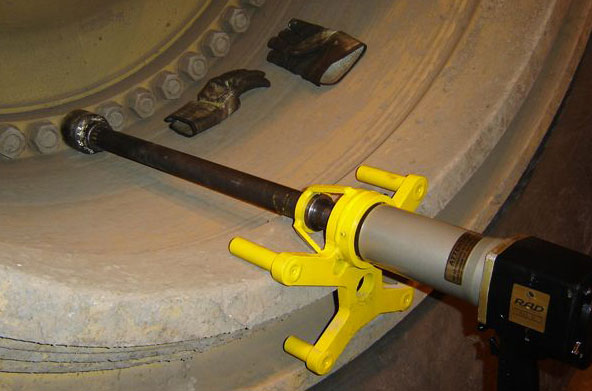

RAD-30-2 Pneumatic Torque Wrench
The RAD 30-2 high speed version of our flagship tool is quickly becoming the tool of choice for extreme power and high RPM's. The RAD 30-2 is being used for heavy to super duty applications in virtually every industry worldwide. The RAD-30-2 replaces 1.5" impact wrenches and hydraulic torque wrenches
RAD Torque Tool



RAD High-Speed Torque Tools.

Introduced to compliment the RAD® Classic Series torque wrenches, RAD High-Speed Series torque wrenches offer the same reliable and dependable solution for the installation and removal of heavy-duty fasteners where accuracy, power, and safety are required. RAD High-Speed Series torque wrenches incorporate a precision engineered high speed gearbox designed for faster run down on time sensitive bolting applications reaching speeds as high as 300 rpm.
RAD 30-2 High Speed Series
Part No.
Drive Size
Torque
(Low- High)
RPM
Weight (lbs)
Noise Level
RAD-12349
1.0"
1400-3000 ft.lbs
55
25.0
85 db

All RAD 30-2 High Speed Torque Tools come fully calibrated complete with:
Torque Tools


• RAD 30-2 Torque Tool
• Standard Reaction Arm and Retention Ring
• 12" Hose & Fittings
• Ergonomic Regulator Cage and Tool Holder
• Operators Manual and CD
• Calibration Chart

To ensure the highest quality of measurement and accuracy, each RAD® pneumatic tool comes individually calibrated traceable to NIST standards.
Reaction Arms for RAD 30-2
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Standard
Deep Socket
Double Ended
Blank
Double Ended Blank
RAD-10022
RAD-10025
RAD-10027
RAD-10024
RAD-10026
***Reaction arms not exactly as shown.

Global Mining Products offers a variety of accessories and custom reaction arms to ensure our tools are achieving 100% of their performance. Please contact us at 877-576-2855 if you have a specific or custom application. We can design asolution to meet your needs.
