Global Mining Products
RAD TORQUE TOOLS & ACCESSORIES
Global Mining Products Inc. (877) 576-2855

Pneumatic Torque Systems
[ view metric version ]

RAD-1400NG-2 Pneumatic Torque Wrench - DISCONTINUED

The RAD 1400NG-2 has been DISCONTINUED. We recommend the RAD 15DX-2.

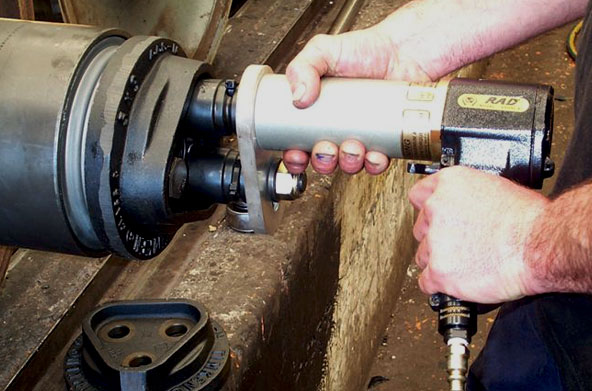

The RAD 1400NG-2 pneumatic torque wrench has a extremely versatile torque range, combining a very usable low range of 500 ft/lbs with a strong top end of 1400 ft/lbs AND a 69 rpm capability. The RAD1400NG-2 has been successfully used worldwide in the mining, petro-chemical, railroad and construction industries.

RAD Torque Tool

The RAD1400NG-2 is ideal for heavy duty bolting applications anywhere that 1" impact wrenches are being used. High speed design increases productivity and is ideal for OTR wheel nut torquing

RAD High-Speed Torque Tools.

Introduced to compliment the RAD® Classic Series torque wrenches, RAD High-Speed Series torque wrenches offer the same reliable and dependable solution for the installation and removal of heavy-duty fasteners where accuracy, power, and safety are required. RAD High-Speed Series torque wrenches incorporate a precision engineered high speed gearbox designed for faster run down on time sensitive bolting applications reaching speeds as high as 300 rpm.


RAD 1400NG-2 High Speed Series
Part No.
Drive Size
Torque
(Low- High)
RPM
Weight (lbs)
Noise Level
RAD-12339
1.0"
500-1400 ft.lbs.
69
16.0
85 db

All RAD 1400NG-2 High Speed Torque Tools come fully calibrated complete with:
Torque Tools


• RAD 1400NG-2 Torque Tool
• Standard Reaction Arm and Retention Ring
• 12" Hose & Fittings
• Ergonomic Regulator Cage and Tool Holder
• Operators Manual and CD
• Calibration Chart

To ensure the highest quality of measurement and accuracy, each RAD® pneumatic tool comes individually calibrated traceable to NIST standards.

Reaction Arms for RAD 1400NG-2
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Standard
Deep Socket
Double Ended
Blank
Double Ended Blank
RAD-10004
RAD-10007
RAD-10009
RAD-10005
RAD-10008
***Reaction arms not exactly as shown.

Global Mining Products offers a variety of accessories and custom reaction arms to ensure our tools are achieving 100% of their performance. Please contact us at
877-576-2855 if you have a specific or custom application. We can design asolution to meet your needs.
