RAD TORQUE TOOLS & ACCESSORIES
Global Mining Products Inc. (877) 576-2855

If you want power from a hand held torque wrench, this is the one to choose. With a huge 8500 ft/lb top end torque output, this tool delivers! When you job demands high torque, and you want the job done quick, just turn to the RAD 85GX.

Precision design and engineering has brought about the next generation in torque wrenches - the Gen-X Series.Designed for extreme duty use in a variety of industries worldwide, Gen-X Series torque wrenches offer:

The ultimate in power-to-weight ratio

Wide torque range to suit multiple applications

Unmatched reliability delivered by one of the most advanced engineered gear boxes on the market

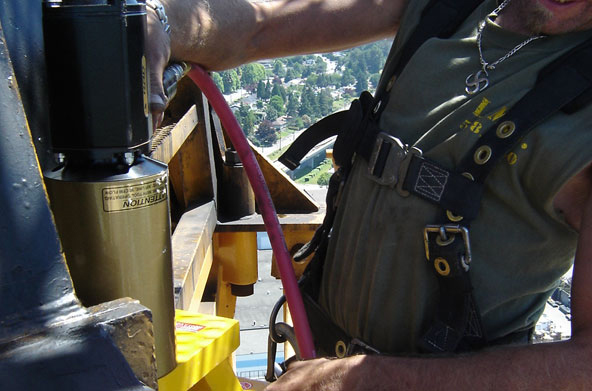

RAD 85GX Torque Tool
Part No.	Drive Size	Torque (Low- High)	RPM	Weight (lbs)	Noise Level
RAD-12383	1.5"	3000-8500 ft.lbs	4.5	38.5	85 db

	RAD 85GX Dimensions
	A: 17.0"
	B: 4.75"
	C: 5.0"
	D: 11.0"

All RAD 85GX Torque Tools come fully calibrated complete with:

• RAD 85GX Torque Tool
• Standard Reaction Arm and Retention Ring
• 12" Hose & Fittings
• Ergonomic Regulator Cage and Tool Holder
• Operators Manual and CD
• Calibration Chart

To ensure the highest quality of measurement and accuracy, each RAD® pneumatic tool comes individually calibrated traceable to NIST standards.

Reaction Arms for RAD 85GX

Standard	Deep Socket	Double Ended	Blank	Double Ended Blank	Clip
RAD-12885	RAD-13508	RAD-13509	RAD-13505	RAD-13506	RAD-11930

***Reaction arms not exactly as shown.

Global Mining Products offers a variety of accessories and custom reaction arms to ensure our tools are achieving 100% of their performance. Please contact us at 877-576-2855 if you have a specific or custom application. We can design a solution to meet your needs.
