Pneumatic Torque Systems
[ view metric version ]

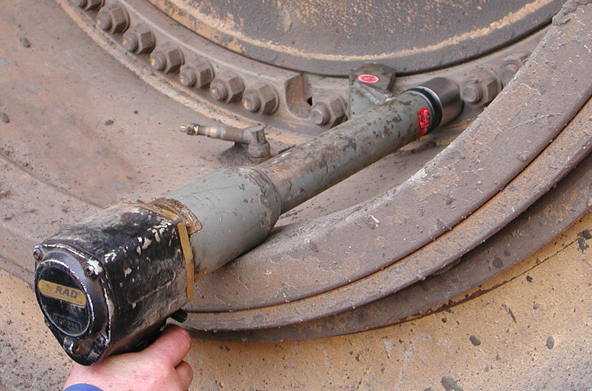

RAD-1800NGX Pneumatic Torque Wrench
The RAD-1800NGX pneumatic torque wrench offers an extremely versatile torque range of 500 to 1800 ft/lbs. The RAD-1800NGX is the ideal choice for heavy duty wheel bolting applications in every industry including mining, construction and petroleum. The extra long nose extension provides optimum reach for maximum versatility!

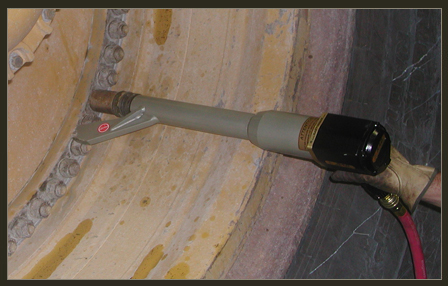

RAD Torque Tool


The RAD Wheel Nut Bolting Series were designed with one job in mind - wheel nut bolting for light and heavy duty applications where torque control is a must. The RAD OTR Mining Series of wheel nut bolting systems were developed exclusively for extreme duty maintenance of mining haul trucks from 50-400 ton capacities and front end loaders. The extended nose allows safe access of virtually all wheel configurations found ontoday's heavy equipment.

  • Extend drive and reaction for safety and ergonomics

  • Removable custom reaction arms designed to fit virtually any wheel configuration
RAD 1800NGX Torque Tool
Part No.
Drive Size
Torque
(Low- High)
RPM
Weight (lbs)
Noise Level
RAD-12344
1.0"
500-1800 ft.lbs
10
27.5
85 db

All RAD 1800NGX Torque Tools come fully calibrated complete with:
Torque Tools


• RAD 1800NGX Torque Tool
• Intregal Reaction Arm
• 12" Hose & Fittings
• Ergonomic Regulator Cage and Tool Holder
• Operators Manual and CD
• Calibration Chart

To ensure the highest quality of measurement and accuracy, each RAD® pneumatic tool comes individually calibrated traceable to NIST standards.
