B-RAD BATTERY TORQUE TOOLS
Global Mining Products Inc. (877) 576-2855

Pneumatic Torque Systems
B-RAD Battery Powered Torque Wrenches

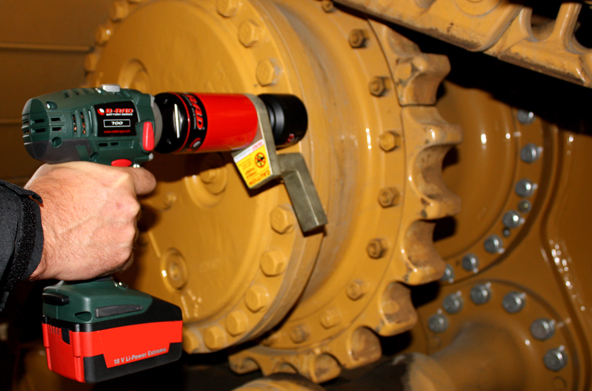

B-RAD-2000 Battery Powered Torque Wrench
No Power? No Problem! The B-RAD-2000 battery powered torque wrenches are ideal for any application, especially where compressed air or electricity are not available.
RAD Battery Powered Torque Tool
  • Patented Extreme Duty Planetary Gear Drive
  • Quick Grip to Adjust Torque Setting
  • Easy View Torque Settings
  • Precision Adjustable Posi-Clutch for Accurate Torque Output
  • Ergonomic Pistol Grip Handle
  • Soft Start Trigger for Safety
  • Convenient Forward/Reverse Switch
  • Quick Release Fastener for Rapid Gear Box or Motor Change

Just imagine the freedom...
No Air Lines! No Power Cords! No Hassles !

B-RAD 2000 Battery Powered Torque Tool
Part No.
Drive Size
Torque
(Low- High)
RPM
Weight (kgs)
Noise Level
RAD-20091
1.0"
800-2000 Nm
1.8
4.2
80 db

B-RAD 2000 Dimensions
A: 275 mm
B: 64 mm
C: 64 mm
D: 263 mm


All B-RAD 2000 Series Torque Tools come fully calibrated complete with:
RAD Battery Torque Tool
  • B-RAD 2000 Battery Powered Torque Tool
  • Reaction Arm & Retention Ring
  • Two 18 volt Lithium Ion batteries [RAD-18795]
  • Battery charger [RAD-16091]
  • Operators manual
  • Calibration Chart
  • Weatherproof Pelican Storage Case

To ensure the highest quality of measurement and accuracy, each RAD® pneumatic tool comes individually calibrated traceable to NIST standards.

Reaction Arms for B-RAD 2000 Torque Tool
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Torque Tool Reaction Arm
Standard
Deep Socket
Double Ended
Blank
Double Ended Blank
Clip
RAD-17375
RAD-18480
RAD-19094
RAD-17888
RAD-19093
RAD-17367
***Reaction arms not exactly as shown.

Global Mining Products offers a variety of accessories and custom reaction arms to ensure our tools are achieving 100% of their performance. Please contact us at 877-576-2855 if you have a specific or custom application. We can design asolution to meet your needs.
B-RAD Series Torque Tools
